Low Level Impact Guard Rails
from €227.67 ex vat(€273.20 inc vat)
Made to order, approximate delivery 23 - 27 working days
- High quality steel elements for maximum impact protection
- Superior build quality and strength
- Innovative fastening technology for simple one-man installation
- Strong ‘C’ section guard rails
- Posts have heavy duty base-plates with 4 fixing points (fixings supplied separately)
- Versions to suit external and internal applications
- Corner rails allow for protection around 90° angles

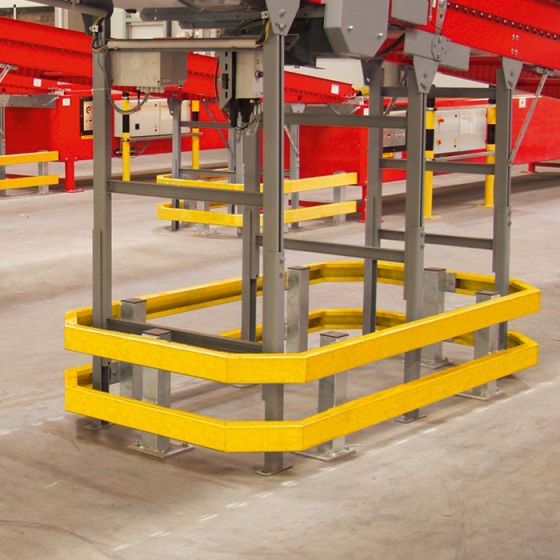

Impact Guard Rails are an efficient and effective method of protecting property, machinery and plant from damage by moving traffic.
Post Specification:
- Surface mounting: 465mmH x 80mm x 80mm Square
- Base Plate 160mmD x 140mmW x 10mm thick
Railing Specification:
- ‘C’ Profile 100mmD x 40mmW x 3mm thick
- Lengths: 1,000, 1,200, 1,500 and 2,000mm
- Corner/angle: 100mmD x 40mmW x 3mm thick x 440mm across
Finishes:
- Indoor: Powder coated yellow
- Outdoor: Hot Dip Galvanised only or Hot Dip Galvanised and powder coated yellow
| Code | Depth | Finish | Height | Size | Type | Weight | Width |
|---|---|---|---|---|---|---|---|
| 24037399 | 80mm | Galvanised | 465mm | H 465 x W 80 x D 80mm | Posts | 9.5kg | 80mm |
| 24037400 | 80mm | Powder Coated | 465mm | H 465 x W 80 x D 80mm | Posts | 9.5kg | 80mm |
| 24037403 | Galvanised | 1000mm | Rails | 9kg | |||
| 24037404 | Galvanised | 1200mm | Rails | 11kg | |||
| 24037405 | Galvanised | 1500mm | Rails | 13.5kg | |||
| 24037406 | Galvanised | 2000mm | Rails | 17.5 | |||
| 24037407 | Powder Coated | 1000mm | Rails | 9kg | |||
| 24037408 | Powder Coated | 1200mm | Rails | 11kg | |||
| 24037409 | Powder Coated | 1500mm | Rails | 13.5kg | |||
| 24037410 | Powder Coated | 2000mm | Rails | 17.5kg | |||
| 24037411 | Galvanised and Powder Coated | 1000mm | Rails | 9kg | |||
| 24037412 | Galvanised and Powder Coated | 1200mm | Rails | 11kg | |||
| 24037413 | Galvanised and Powder Coated | 1500mm | Rails | 13.5kg | |||
| 24037414 | Galvanised and Powder Coated | 2000mm | Rails | 17.5kg | |||
| 24037401 | 80mm | Galvanised and Powder Coated | 465mm | H 465 x W 80 x D 80mm | Posts | 9.5kg | 80mm |
| 24037415 | Galvanised | Corner Sections | 6kg | ||||
| 24037416 | Powder Coated | Corner Sections | 6kg | ||||
| 24037417 | Galvanised and Powder Coated | Corner Sections | 6kg | ||||
| 100370388 | Powder Coated | Corner Sections | 6kg | ||||
| 100370389 | Galvanised and Powder Coated | Corner Sections | 6kg | ||||
| 100370392 | Galvanised | Corner Sections | 6kg | ||||
| 100370390 | Powder Coated | Corner Sections | 2kg | ||||
| 100370393 | All | Corner Sections | 2kg | ||||
| 24037402 | - | H 12 x W 100mm | Accessories | 0.2kg | |||
| 24037418 | - | Accessories | 0.1kg | ||||
| 24037419 | Galvanised | Accessories | 1.5kg | ||||
| 24037420 | - | Accessories | 1.5kg | ||||
| 100370391 | All | Accessories | |||||
| 100100073 | All | All | Accessories |
