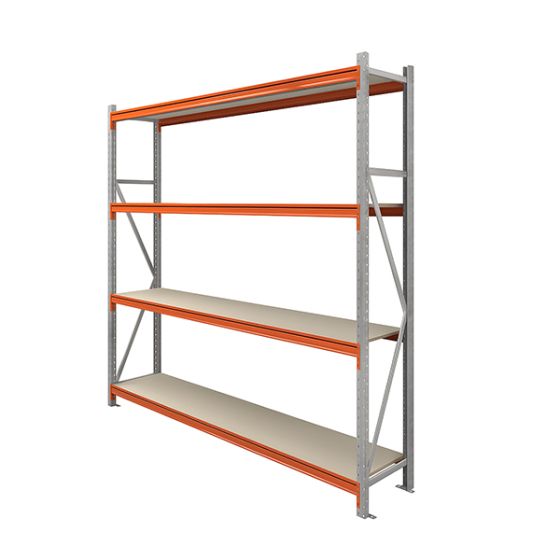

TUFF Longspan Shelving 2.5 Metre High 4 Shelves
Made to order, approximate delivery 23 - 27 working days
Our TUFF Longspan Shelving Range are versatile and robust Industrial Racking Units designed for manual picking of small to medium non-palletised items.
- 5-Year Warranty Period
- 500kg UDL capacity per shelf
- 2500mm height with 8x width and 6x depth variations
- Bays with 1200mm depth use 25mm thick shelves
- Width options below specify the clear entry for loading items
- 4x adjustable shelves (every 50mm) for optimal storage solutions
- 3x shelf options are also available (see additional information below)
- Cross-beam supports and locking pin included
- End frames come ready-assembled to provide additional strength
- End frames and beams manufactured from corrosion-resistant steel
- Extension bays available for expansion/growth requirements
- Additional shelves available to purchase on request
Our TUFF Longspan Shelving allows easy access to the highest levels in industrial shelving environments (S/R cranes or order-picking trucks). Providing visual access to all products.
Recommended Use:
- Picking products in warehouses
- Parts storage and packaging materials
- Automotive parts, paints etc.
- Industrial and hardware products
- Merchandising
- Heavy boxes in workshops
- Bulk storage or wide loads
Longspan Shelving Dimensions:
- Height: 2000mm
- Widths: 950, 1150, 1350, 1500, 1850, 2250, 2400 or 2700mm
- Depths: 400, 500, 600, 800, 900 or 1200mm
Specifications:
- Galvanised Blue Steel Framework – RAL 5010
- Galvanised Orange Steel Beams – RAL 2004
- 4x heavy-duty chipboard shelving levels
Certifications:
- ISO 9001: 2008
- ISO 18001: 2004
- OSHAS 18001: 2007
- Welding certificate: UNE EN ISO 3834-2: 2006
- Galvanized steel corrosion resistance certificate: UNE EN
- ISO 14713-1
- Galvanized steel reaction to fire: EN 13501-1: 2007
Please note: Widths in the options specify the clear entry for loading items. The overall width of each bay can be calculated by the width + 104mm (the blue uprights are 52mm thick each). Please note that the dimensions given for height and depth are the overall size.
If you would prefer this longspan shelving unit with 3x shelves, take a look at our TUFF Longspan Shelving 2.5 Metre High 3 Shelves option.
If you require more information or need a large project, please contact our sales team on 01922 743833. Alternatively, Contact Us via our Live Chat service. Workplace Products provide FREE Site Surveys for all our shelving projects.
| Code | Depth | Height | Width |
|---|---|---|---|
| 90530180STA | 400mm | 2500mm | 950mm |
| 90530181STA | 400mm | 2500mm | 1150mm |
| 90530182STA | 400mm | 2500mm | 1350mm |
| 90530183STA | 400mm | 2500mm | 1500mm |
| 90530184STA | 400mm | 2500mm | 1850mm |
| 90530185STA | 400mm | 2500mm | 2250mm |
| 90530186STA | 400mm | 2500mm | 2400mm |
| 90530187STA | 400mm | 2500mm | 2700mm |
| 90530188STA | 500mm | 2500mm | 950mm |
| 90530189STA | 500mm | 2500mm | 1150mm |
| 90530190STA | 500mm | 2500mm | 1350mm |
| 90530191STA | 500mm | 2500mm | 1500mm |
| 90530192STA | 500mm | 2500mm | 1850mm |
| 90530193STA | 500mm | 2500mm | 2250mm |
| 90530194STA | 500mm | 2500mm | 2400mm |
| 90530195STA | 500mm | 2500mm | 2700mm |
| 90530196STA | 600mm | 2500mm | 950mm |
| 90530197STA | 600mm | 2500mm | 1150mm |
| 90530198STA | 600mm | 2500mm | 1350mm |
| 90530199STA | 600mm | 2500mm | 1500mm |
| 90530200STA | 600mm | 2500mm | 1850mm |
| 90530201STA | 600mm | 2500mm | 2250mm |
| 90530202STA | 600mm | 2500mm | 2400mm |
| 90530203STA | 600mm | 2500mm | 2700mm |
| 90530204STA | 800mm | 2500mm | 950mm |
| 90530205STA | 800mm | 2500mm | 1150mm |
| 90530206STA | 800mm | 2500mm | 1350mm |
| 90530207STA | 800mm | 2500mm | 1500mm |
| 90530208STA | 800mm | 2500mm | 1850mm |
| 90530209STA | 800mm | 2500mm | 2250mm |
| 90530210STA | 800mm | 2500mm | 2400mm |
| 90530211STA | 800mm | 2500mm | 2700mm |
| 90530212STA | 900mm | 2500mm | 950mm |
| 90530213STA | 900mm | 2500mm | 1150mm |
| 90530214STA | 900mm | 2500mm | 1350mm |
| 90530215STA | 900mm | 2500mm | 1500mm |
| 90530216STA | 900mm | 2500mm | 1850mm |
| 90530217STA | 900mm | 2500mm | 2250mm |
| 90530218STA | 900mm | 2500mm | 2400mm |
| 90530219STA | 900mm | 2500mm | 2700mm |
| 90530220STA | 1200mm | 2500mm | 950mm |
| 90530221STA | 1200mm | 2500mm | 1150mm |
| 90530222STA | 1200mm | 2500mm | 1350mm |
| 90530223STA | 1200mm | 2500mm | 1500mm |
| 90530224STA | 1200mm | 2500mm | 1850mm |
| 90530225STA | 1200mm | 2500mm | 2250mm |
| 90530226STA | 1200mm | 2500mm | 2400mm |
| 90530227STA | 1200mm | 2500mm | 2700mm |
| 90530180EXT | 400mm | 2500mm | 950mm |
| 90530181EXT | 400mm | 2500mm | 1150mm |
| 90530182EXT | 400mm | 2500mm | 1350mm |
| 90530183EXT | 400mm | 2500mm | 1500mm |
| 90530184EXT | 400mm | 2500mm | 1850mm |
| 90530185EXT | 400mm | 2500mm | 2250mm |
| 90530186EXT | 400mm | 2500mm | 2400mm |
| 90530187EXT | 400mm | 2500mm | 2700mm |
| 90530188EXT | 500mm | 2500mm | 950mm |
| 90530189EXT | 500mm | 2500mm | 1150mm |
| 90530190EXT | 500mm | 2500mm | 1350mm |
| 90530191EXT | 500mm | 2500mm | 1500mm |
| 90530192EXT | 500mm | 2500mm | 1850mm |
| 90530193EXT | 500mm | 2500mm | 2250mm |
| 90530194EXT | 500mm | 2500mm | 2400mm |
| 90530195EXT | 500mm | 2500mm | 2700mm |
| 90530196EXT | 600mm | 2500mm | 950mm |
| 90530197EXT | 600mm | 2500mm | 1150mm |
| 90530198EXT | 600mm | 2500mm | 1350mm |
| 90530199EXT | 600mm | 2500mm | 1500mm |
| 90530200EXT | 600mm | 2500mm | 1850mm |
| 90530201EXT | 600mm | 2500mm | 2250mm |
| 90530202EXT | 600mm | 2500mm | 2400mm |
| 90530203EXT | 600mm | 2500mm | 2700mm |
| 90530204EXT | 800mm | 2500mm | 950mm |
| 90530205EXT | 800mm | 2500mm | 1150mm |
| 90530206EXT | 800mm | 2500mm | 1350mm |
| 90530207EXT | 800mm | 2500mm | 1500mm |
| 90530208EXT | 800mm | 2500mm | 1850mm |
| 90530209EXT | 800mm | 2500mm | 2250mm |
| 90530210EXT | 800mm | 2500mm | 2400mm |
| 90530211EXT | 800mm | 2500mm | 2700mm |
| 90530212EXT | 900mm | 2500mm | 950mm |
| 90530213EXT | 900mm | 2500mm | 1150mm |
| 90530214EXT | 900mm | 2500mm | 1350mm |
| 90530215EXT | 900mm | 2500mm | 1500mm |
| 90530216EXT | 900mm | 2500mm | 1850mm |
| 90530217EXT | 900mm | 2500mm | 2250mm |
| 90530218EXT | 900mm | 2500mm | 2400mm |
| 90530219EXT | 900mm | 2500mm | 2700mm |
| 90530220EXT | 1200mm | 2500mm | 950mm |
| 90530221EXT | 1200mm | 2500mm | 1150mm |
| 90530222EXT | 1200mm | 2500mm | 1350mm |
| 90530223EXT | 1200mm | 2500mm | 1500mm |
| 90530224EXT | 1200mm | 2500mm | 1850mm |
| 90530225EXT | 1200mm | 2500mm | 2250mm |
| 90530226EXT | 1200mm | 2500mm | 2400mm |
| 90530227EXT | 1200mm | 2500mm | 2700mm |
| 90530468STA | 1000mm | 2500mm | 950mm |
| 90530469STA | 1000mm | 2500mm | 1150mm |
| 90530470STA | 1000mm | 2500mm | 1350mm |
| 90530471STA | 1000mm | 2500mm | 1500mm |
| 90530472STA | 1000mm | 2500mm | 1850mm |
| 90530473STA | 1000mm | 2500mm | 2250mm |
| 90530474STA | 1000mm | 2500mm | 2400mm |
| 90530475STA | 1000mm | 2500mm | 2700mm |
| 90530468EXT | 1000mm | 2500mm | 950mm |
| 90530469EXT | 1000mm | 2500mm | 1150mm |
| 90530470EXT | 1000mm | 2500mm | 1350mm |
| 90530471EXT | 1000mm | 2500mm | 1500mm |
| 90530472EXT | 1000mm | 2500mm | 1850mm |
| 90530473EXT | 1000mm | 2500mm | 2250mm |
| 90530474EXT | 1000mm | 2500mm | 2400mm |
| 90530475EXT | 1000mm | 2500mm | 2700mm |
