Heavy Duty Galvanised Midispan Racking - Up to 4300kg Capacity
In Stock, approximate delivery 10 - 12 working days
Our Galvanised Midispan Heavy Duty Shelving range is a robust and high-quality Longspan Shelving System ideal for the most demanding industrial environments. Offering heavy-duty capacities up to 4300kg.
- Frame capacities up to 4300kg UDL
- 5-Year Guarantee
- Shelf capacities up to 750kg UDL
- Heavy-duty galvanised steel construction
- Easy to build and restructure
- 3x height variations with 6x widths and 5x depths
- Can build a high bay or multi-tier installation
- Adjustable beams every 25mm
Our Galvanised Midispan Longspan Shelving Unit is versatile and hard-wearing. Ideal for industrial environments such as warehouses, storerooms and workshops.
This specialist Heavy Duty Racking system is designed to be robust and durable. Available in a wide range of sizes offering you complete flexibility when designing your storerooms or warehouse.
The shelving beam levels can be adjusted at 25mm increments and come decked with heavy-duty steel shelf panels that sit flush with the top of the beam. This high-quality design eliminates any sharp edges when assembling or in use. Making the system safe to assemble and use.
Our Midispan Longspan Shelving is also available in an array of accessories for optimum functionality, making the midispan racking ideal for storing hanging garments, heavy boxes, wide loads, tyres, motor panels, exhausts and much more.
How To Buy:

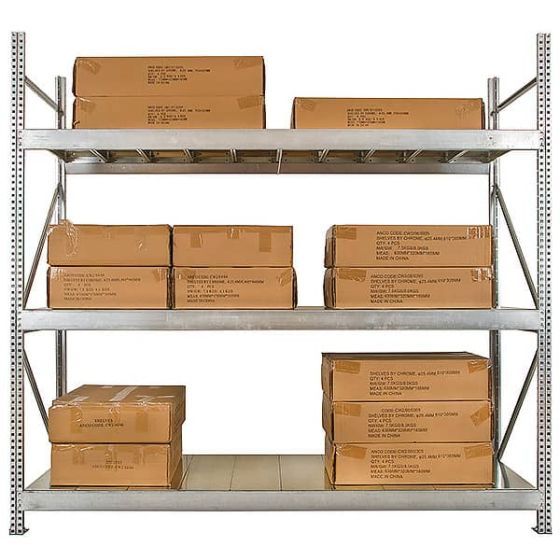

For a single bay you will need to purchase 2x end frames as well as the required number of shelves (prices in the table are for 1x end frame and 1x shelf level). For Extension Bays add 1x end frame plus the number of shelf levels you require. To build the bay shown in the main product image you will require 2x end frames plus 3x profile beams.
Please Note:
- Frame total load capacities are based on shelf levels placed a 400mm intervals.
- Shelf load capacities are dependent on size and beam profile. Please see the specification table for further load information.
Specifications:
- Upright Construction: Galvanised Steel
- C50 and C70 Beam Construction: Galvanised Steel
- Shelf Construction: Galvanised Steel Panels
- Grey RAL7037
As well as single-tier installations we can also provide high bay or multi-tier installations. If you require more information or need a large project, please contact our sales team on 01922 743833. Alternatively, Contact Us via our Live Chat service. Workplace Products provide FREE Site Surveys for all our shelving projects.
| Code | Capacity | Depth | Height | Width |
|---|---|---|---|---|
| MSB/1004C50 | 400kg | D400mm | - | W1000mm |
| MSB/1006C50 | 400kg | D600mm | All | W1000mm |
| MSB/1008C50 | 400kg | D800mm | All | W1000mm |
| MSB/1010C50 | 350kg | D1000mm | All | W1000mm |
| MSB/1012C50 | 325kg | D1200mm | All | W1000mm |
| MSB/1204C50 | 340kg | D400mm | - | W1200mm |
| MSB/1206C50 | 340kg | D600mm | All | W1200mm |
| MSB/1208C50 | 340kg | D800mm | All | W1200mm |
| MSB/1210C50 | 340kg | D1000mm | All | W1200mm |
| MSB/1212C50 | 340kg | D1200mm | All | W1200mm |
| MSB/1604C50 | 250kg | D400mm | - | W1600mm |
| MSB/1606C50 | 250kg | D600mm | All | W1600mm |
| MSB/1608C50 | 250kg | D800mm | All | W1600mm |
| MSB/1610C50 | 250kg | D1000mm | All | W1600mm |
| MSB/1612C50 | 250kg | D1200mm | All | W1600mm |
| MSB/1804C70 | 660kg | D400mm | - | W1800mm |
| MSB/1806C70 | 660kg | D600mm | All | W1800mm |
| MSB/1808C70 | 660kg | D800mm | All | W1800mm |
| MSB/1810C70 | 630kg | D1000mm | All | W1800mm |
| MSB/1812C70 | 585kg | D1200mm | All | W1800mm |
| MSB/2004C70 | 600kg | D400mm | - | W2000mm |
| MSB/2006C70 | 600kg | D600mm | All | W2000mm |
| MSB/2008C70 | 600kg | D800mm | All | W2000mm |
| MSB/2010C70 | 600kg | D1000mm | All | W2000mm |
| MSB/2012C70 | 600kg | D1200mm | All | W2000mm |
| MSB/2404C70 | 480kg | D400mm | - | W2400mm |
| MSB/2406C70 | 480kg | D600mm | All | W2400mm |
| MSB/2408C70 | 480kg | D800mm | All | W2400mm |
| MSB/2410C70 | 480kg | D1000mm | All | W2400mm |
| MSB/2412C70 | 480kg | D1200mm | All | W2400mm |
| MSB/1004C70 | 500kg | D400mm | All | W1000mm |
| MSB/1006C70 | 500kg | D600mm | All | W1000mm |
| MSB/1008C70 | 400kg | D800mm | All | W1000mm |
| MSB/1010C70 | 350kg | D1000mm | All | W1000mm |
| MSB/1012C70 | 325kg | D1200mm | All | W1000mm |
| MSB/1204C70 | 600kg | D400mm | All | W1200mm |
| MSB/1206C70 | 600kg | D600mm | All | W1200mm |
| MSB/1208C70 | 480kg | D800mm | All | W1200mm |
| MSB/1210C70 | 420kg | D1000mm | All | W1200mm |
| MSB/1212C70 | 390kg | D1200mm | All | W1200mm |
| MSB/1604C70 | 750kg | D400mm | All | W1600mm |
| MSB/1606C70 | 750kg | D600mm | All | W1600mm |
| MSB/1608C70 | 640kg | D800mm | All | W1600mm |
| MSB/1610C70 | 560kg | D1000mm | All | W1600mm |
| MSB/1612C70 | 520kg | D1200mm | All | W1600mm |
| MSF/19/04 | 4300kg | H1950mm | All | |
| MSF/19/06 | 4300kg | D600mm | H1950mm | - |
| MSF/19/08 | 4300kg | D800mm | H1950mm | - |
| MSF/19/10 | 4300kg | D1000mm | H1950mm | - |
| MSF/19/12 | 4300kg | D1200mm | H1950mm | - |
| MSF/25/04 | 4300kg | H2550mm | All | |
| MSF/25/06 | 4300kg | D600mm | H2550mm | - |
| MSF/25/08 | 4300kg | D800mm | H2550mm | - |
| MSF/25/10 | 4300kg | D1000mm | H2550mm | - |
| MSF/25/12 | 4300kg | D1200mm | H2550mm | - |
| MSF/30/04 | 4300kg | H3000mm | All | |
| MSF/30/06 | 4300kg | D600mm | H3000mm | - |
| MSF/30/08 | 4300kg | D800mm | H3000mm | - |
| MSF/30/10 | 4300kg | D1000mm | H3000mm | - |
| MSF/30/12 | 4300kg | D1200mm | H3000mm | - |
